Rigid Chemical Resistant Industrial PVC Sheets

thumb

Allplastics Engineering offers and fabricates a wide selection of Rigid PVC Sheets that provide exceptional chemical resistance against many diluted and concentrated acids, alkalis, and salts. The same principal applies to alcohols, aliphatic compounds, and many oils.

Excellent electrical properties make PVC an ideal choice for meter boxes and electrical switch panels. PVC sheets are available from 1.5mm Thick up to 50mm Thick. They can be cut using panel saw, jigsaws, CNC routers. However, laser cutting is not recommended due to fumes that are released in the process.

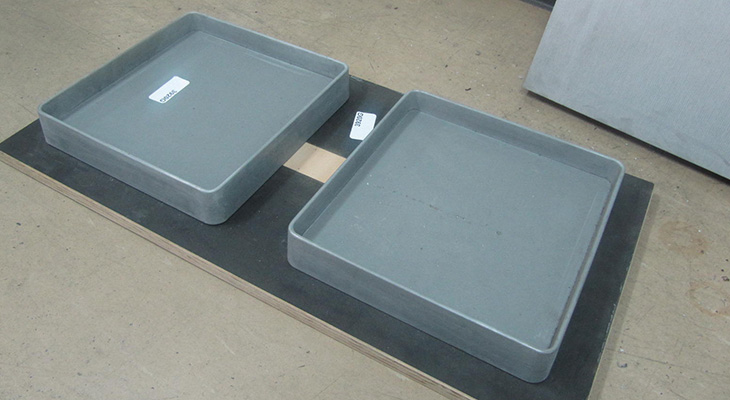

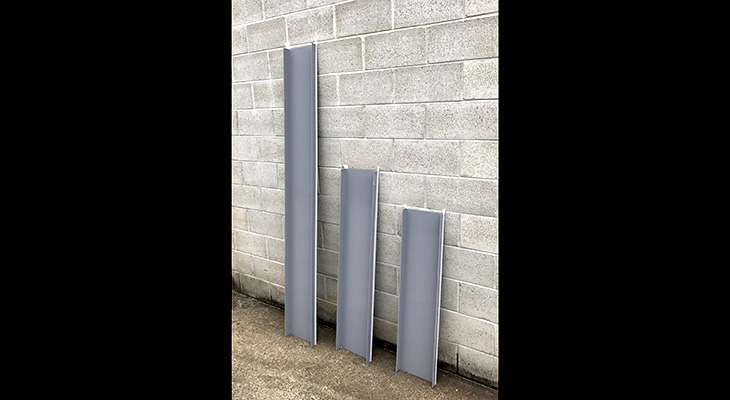

The rigidity of PVC sheets above 6mm provide excellent mechanical properties. The PVC sheets are and ideal material for welding extraction systems, caustic baths, swimming pool equipment parts; fans, switch and meter boxes, switch panels, custom made gutters and drip trays.

The composition of PVC allows it to be easily bonded/glued using a range of standard PVC adhesives.

PVC can be easily hot shaped and is suitable for vacuum deep drawing.

PVC Rigid Product Information

Key Features

  • Excellent electrical properties
  • Good machining and thermoformable properties
  • Low moisture resistance
  • Solvent cementable
  • Very high chemical resistance

Applications and Functions

  • Chemical storage tanks
  • Face shields
  • Insulating bushes
  • Nozzles
  • Photographic dishes
  • Shims
  • Tablet slats
  • Tank liners and fittings

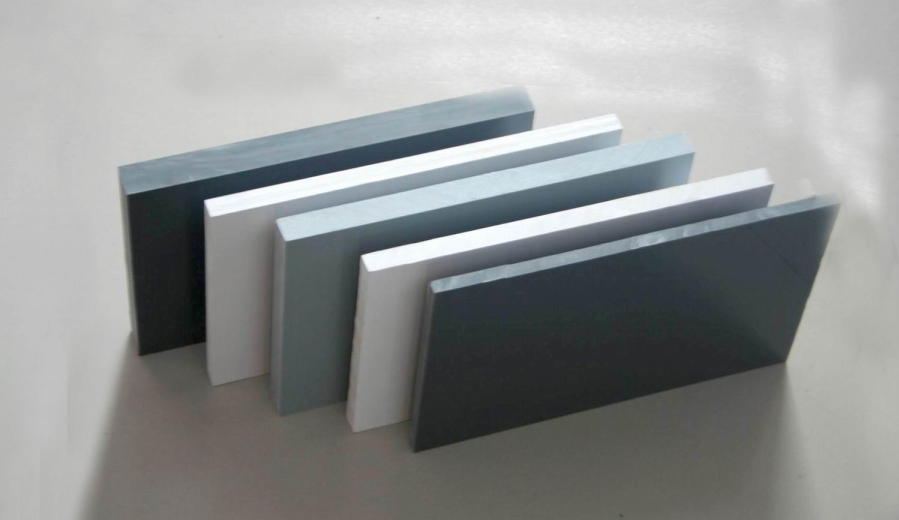

Availability Rigid PVC sheets:

  • Size (mm): 2000 x 1000mm
    Thickness(mm): 15-50mm

  • Size (mm):2440 x 1220
    Thickness (mm):
    • Grey 1.5mm to 50mm
    • White and Clear
      3mm ; 4,5mm ; 6mm and 10mm

  • Colours: Grey, White, Clear

Availability Rigid PVC rods:

  • 150 - 200 (0.5m length)
  • 75 - 150 (1m length)
  • up to 70 (2m length)
  • Diameter (mm): 6 - 200
  • Colours: Grey and Red
